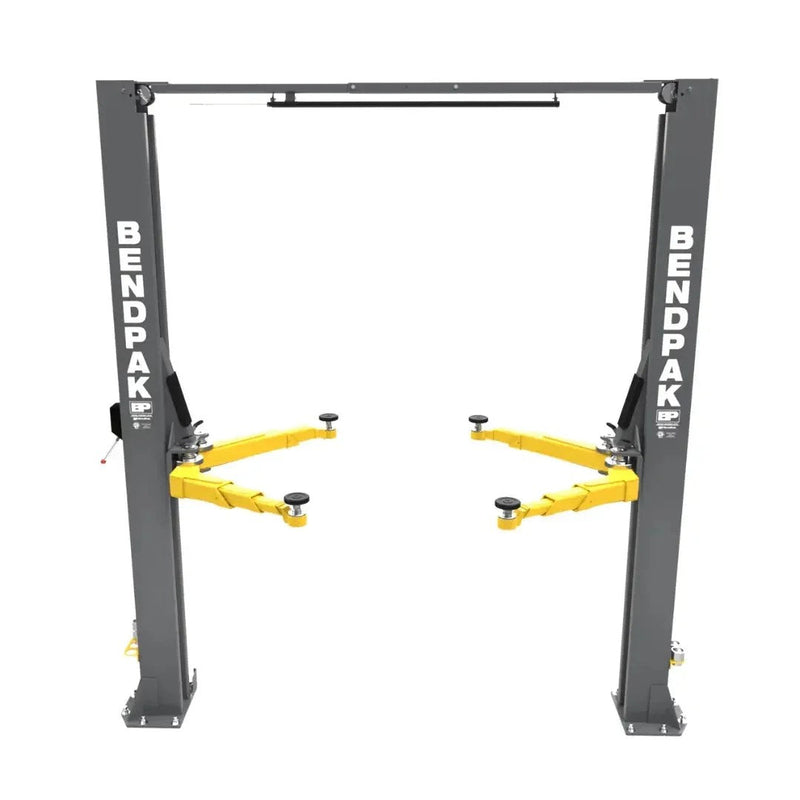

BendPak 10AP 10,000 lb. 2 Post Lift

Name: BendPak 10AP 10,000 lb. 2 Post Lift
Brand: BendPak
SKU: 5175304
Price: 2499.0 USD
Availability: InStock

$2,499.00 - $2,499.00

$2,499.00

$2,499.00 - $2,499.00

$2,499.00

FREE Shipping to all locations in USA

Delivered in 8 to 12 business days

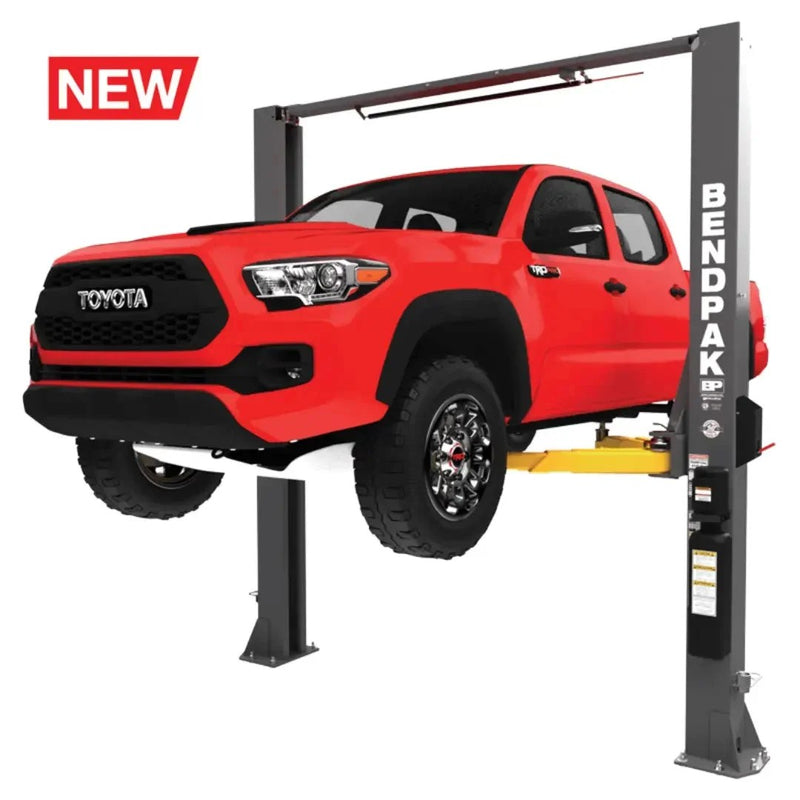

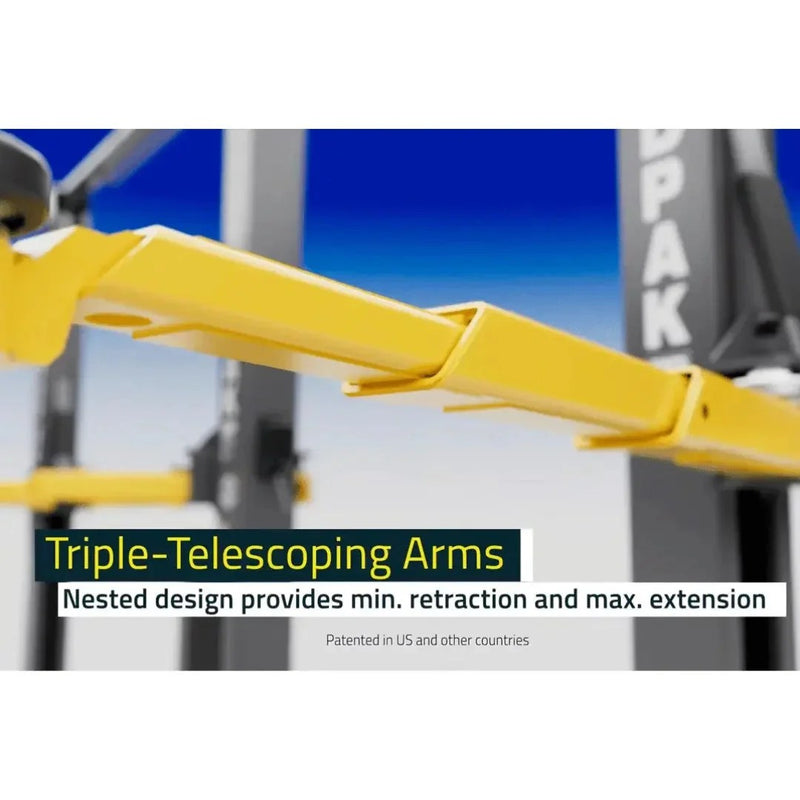

The BendPak 10AP two-post lift delivers industrial-strength lifting performance with a 4,536 kg capacity. Its revolutionary design combines the best qualities of symmetric and asymmetric configurations in one package, featuring an expandable top beam and patented Bi-Metric™ arms for versatile vehicle fitment. The automatic arm restraint system provides over 907 kg of load-holding force to prevent unplanned movement, while triple-telescoping nested swing arms offer extended reach and better access to lift points.

Engineered for extreme use and operator safety, this lift includes a single-point safety lock release, dual hydraulic direct-drive cylinders, and oversized self-lubricating carriages. Low-Pro™ arms with dropped-end pad receivers protect lowered vehicles, and the 14-piece adapter set with double-telescoping screw pads ensures secure frame engagement for virtually any vehicle.

Key Features

Lifting Capacity	4,536 kg

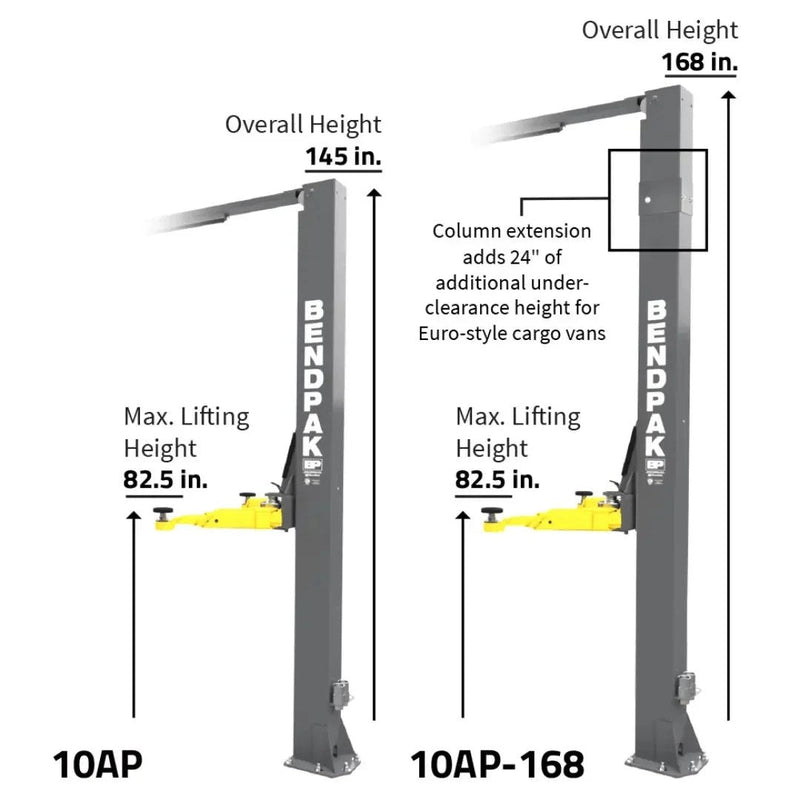

A. Rise	175.3 cm
B. Rise + Pad	183.5 cm
D. Min Height + Pad	10.2 cm
Time to Full Rise	45 Seconds
E. Height Overall	368.3 cm
F. Width Overall	342.9 cm or 368.3 cm
G. Outside Columns	322.6 cm or 348 cm
H. Inside Columns	275 cm or 300.4 cm
I. Drive-Thru Clearance	233.7 cm or 259.1 cm
J. Floor to Overhead Switch	353.7 cm
K. Front Arm Reach (MIN/MAX)	62.2 cm–127 cm
L. Rear Arm Reach (MIN/MAX)	81.2 cm–150.4 cm
Max Load per Arm	1,134 kg
Noise Level	<70 dB
Shipping Dimensions	381 cm x 61 cm x 71.1 cm
Shipping Weight	784.3 kg
Brand	BendPak
Model Number	10AP
Product Type	2 Post Lift
Power System	Electric/Hydraulic
Arm Design	Bi-Metric™, Triple-Telescoping
Safety Lock System	Automatic, Single-Point Release

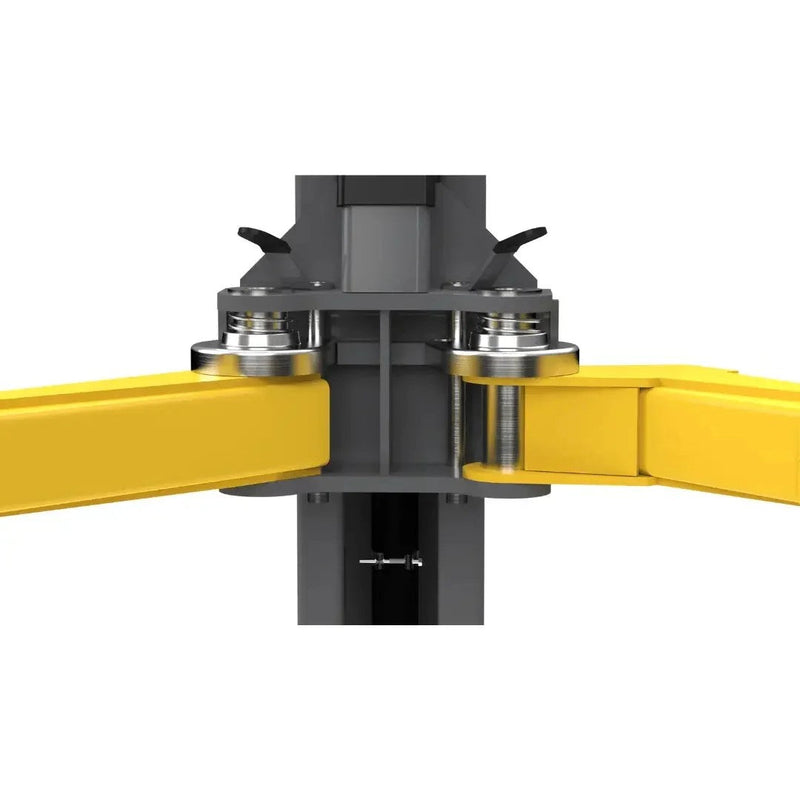

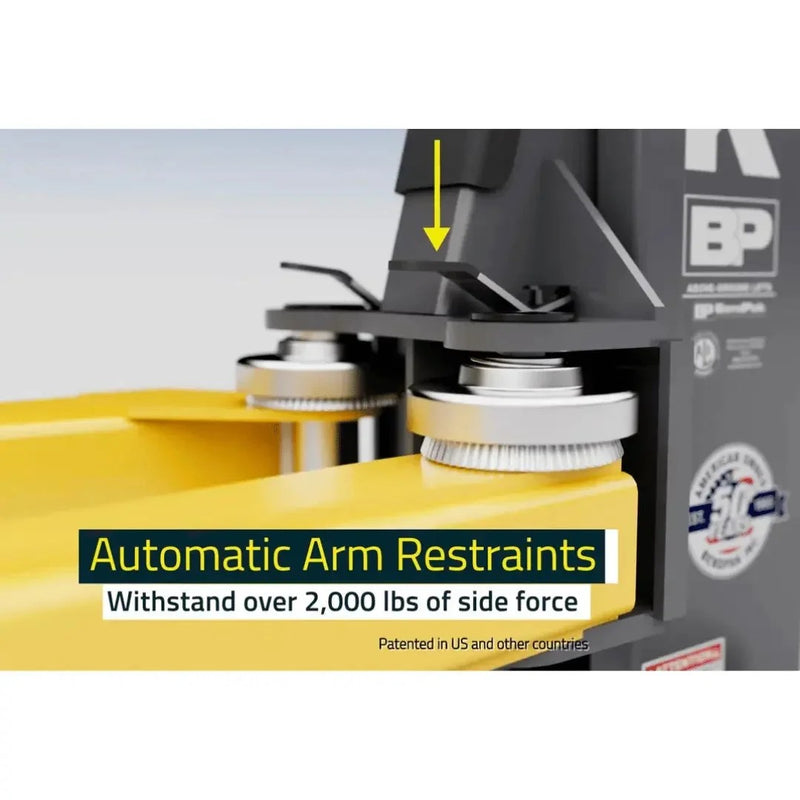

Arm Restraint System	Automatic (ASARS), 907+ kg Holding Force
Carriage Height	134.6 cm & 149.9 cm
Finish	Durable Powder Coat
Bearing System	Self-Lubricating UHMW
Equalizer Cables	1.27 cm Heavy-Duty
Certification	ALI Certified

Highlights

Durable powder coat finish

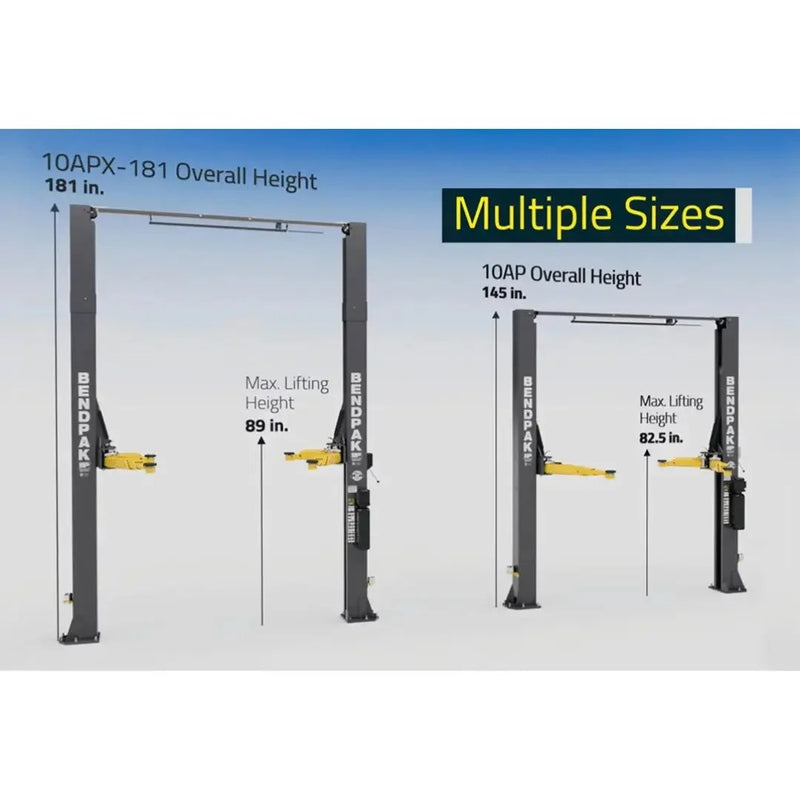

Expandable top beam for wide or narrow configurations
Double‐telescoping screw pads
Padded overhead safety shutoff bar
Bi-Metric™ arm design
Single-point safety release
Drop‐end arms for low pad height
Dual hydraulic direct‐drive cylinders
Oversized 53″ & 59″ tall carriages
Electric / hydraulic power system
Self‐lubricating UHMW bearing system
Safety locks spaced every 3″
Automatic arm restraints rated for 2,000+ lbs.
Heavy‐duty 1/2″ equalizer cables
Oversized cable sheaves reduce fatigue

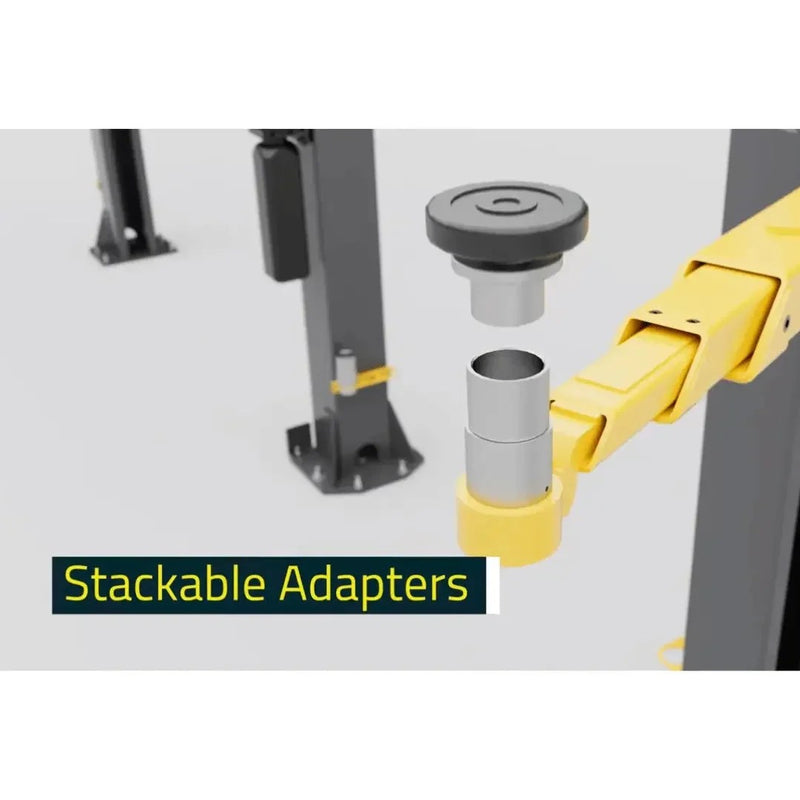

14-piece standard adapter set

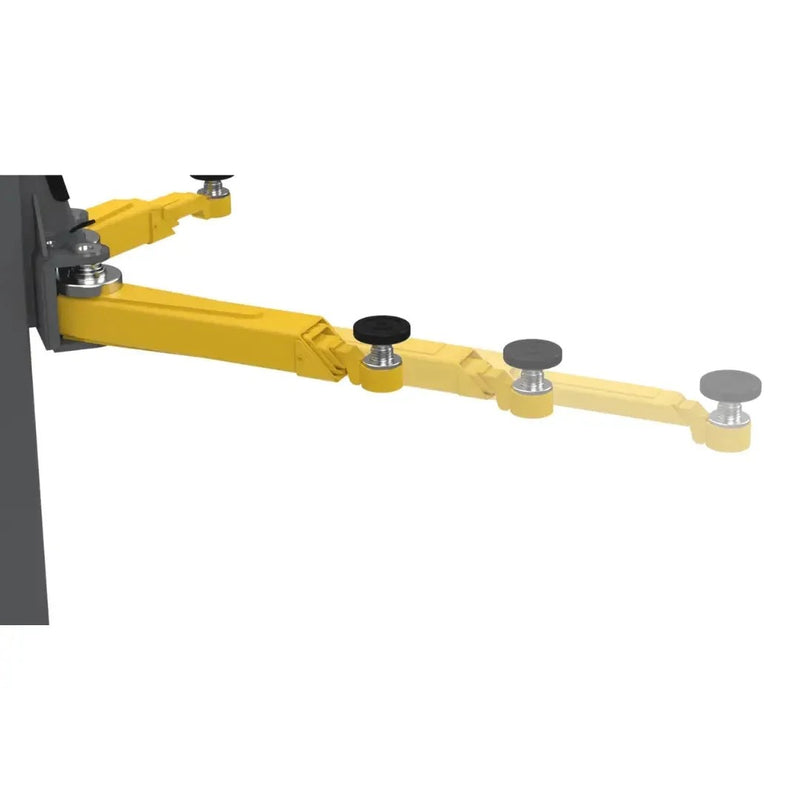

Four triple-telescoping arms
ALI certified

Compatibility

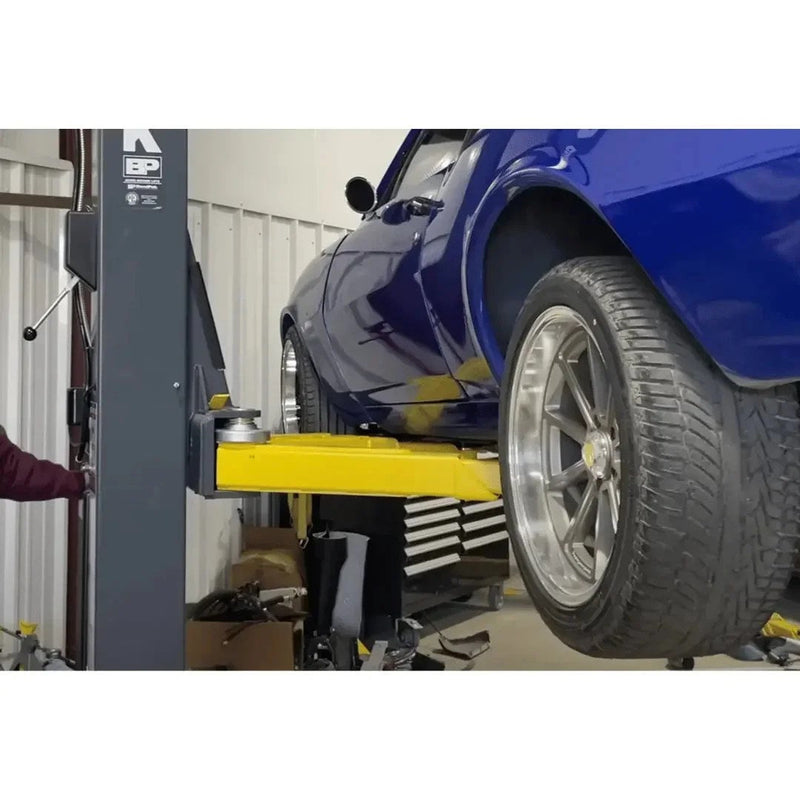

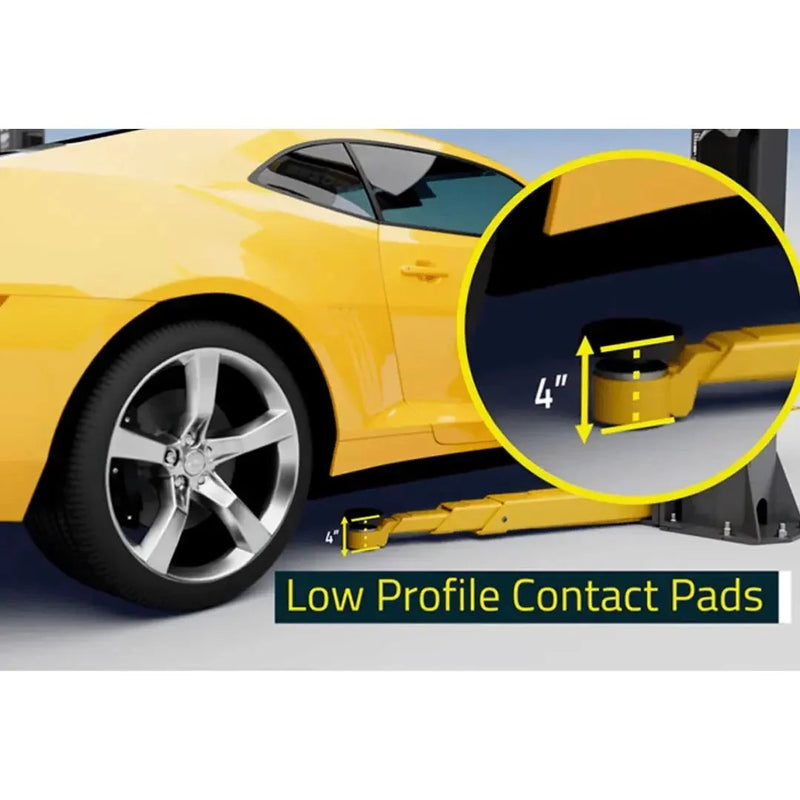

The BendPak 10AP is designed to fit virtually every vehicle lifting need. Its Bi-Metric™ swing arms and triple-telescoping design accommodate a wide range of vehicle frame types, from cars to light trucks, with front arm reach from 62.2 cm to 127 cm and rear arm reach from 81.2 cm to 150.4 cm. Low-Pro™ arms with dropped-end pad receivers provide clearance for lowered vehicles and protect side skirts and ground effects.

What's included

BendPak 10AP Two-Post Lift Assembly

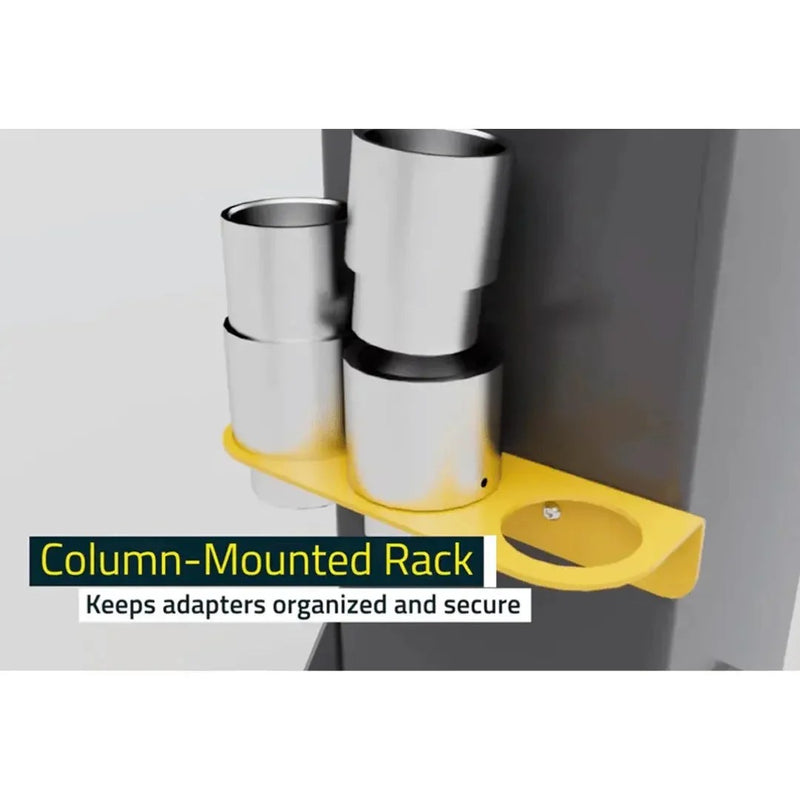

14-Piece Standard Adapter Set

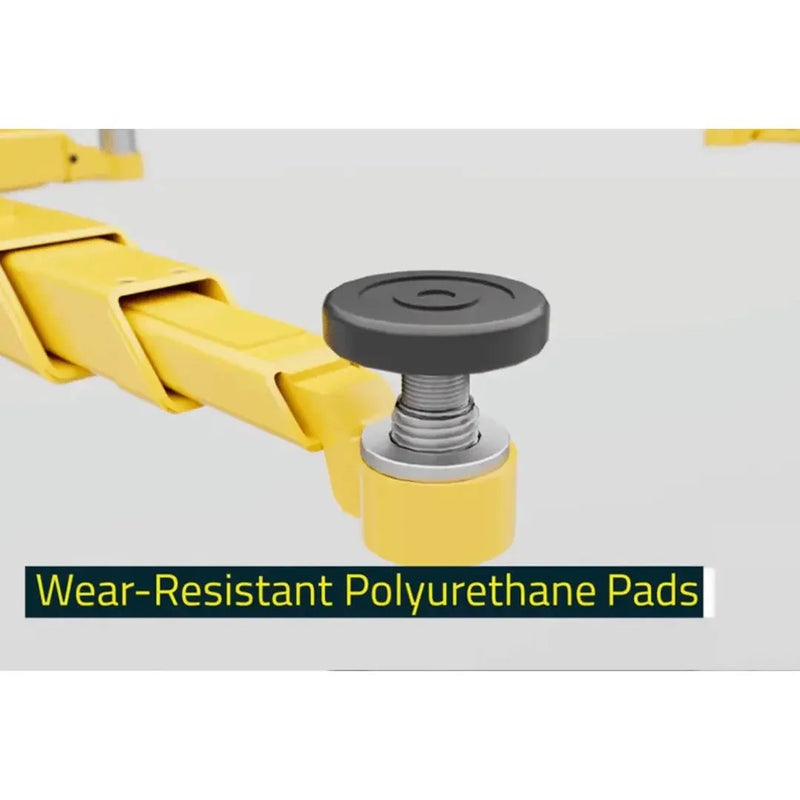

Double-Telescoping Screw Pads with Polyurethane Pads
Dual Hydraulic Direct-Drive Cylinders
Electric/Hydraulic Power System
Heavy-Duty 1.27 cm Equalizer Cables
Installation Hardware and Manual

Frequently asked questions

What is the lifting capacity of the BendPak 10AP?

The BendPak 10AP has a lifting capacity of 4,536 kg, with a maximum load of 1,134 kg per arm.

Can the BendPak 10AP be used in both symmetric and asymmetric configurations?

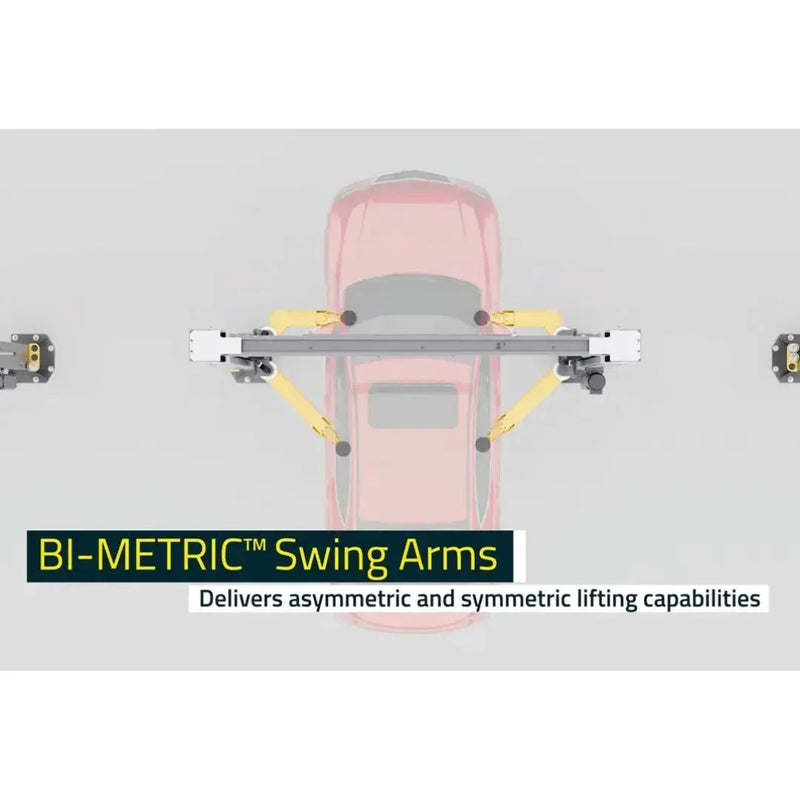

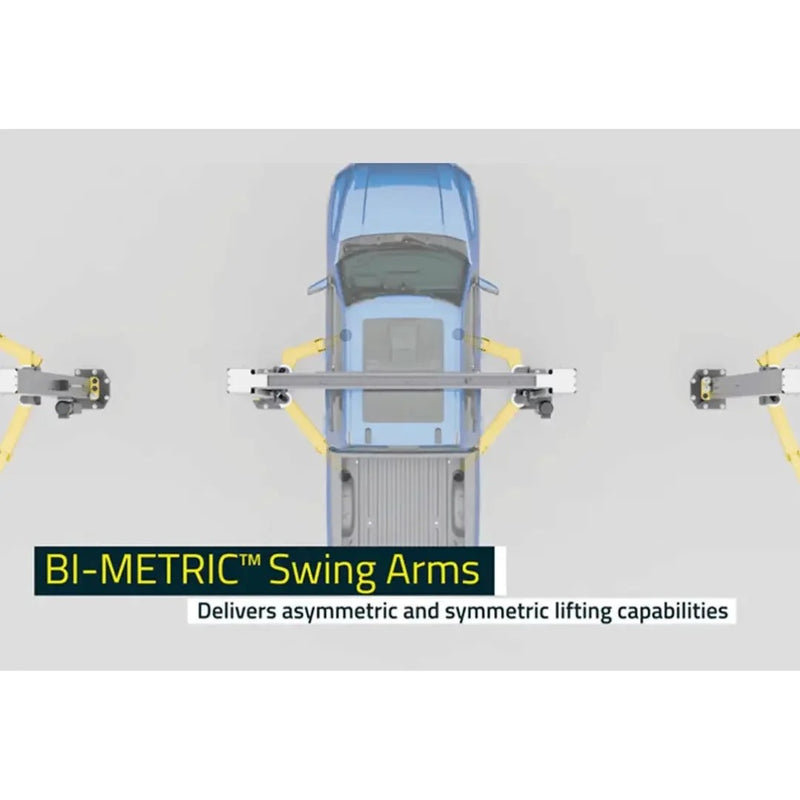

Yes, the exclusive Bi-Metric™ swing arm design allows operators to switch between symmetric and asymmetric configurations without changing out the arms.

What safety features does the BendPak 10AP include?

The 10AP includes a patented automatic safety lock system with single-point release, an automatic arm restraint system (ASARS) rated for over 907 kg of holding force, and a padded overhead safety shutoff bar.

What are the installation width options for the BendPak 10AP?

The 10AP features an expandable top beam that allows for wide or narrow installation, with outside column widths of 322.6 cm or 348 cm and inside column widths of 275 cm or 300.4 cm.

Shipping information

Estimated delivery: 8–12 business days after order confirmation, contiguous U.S. only. Machines ship by tracked freight carrier — you’ll receive tracking details by email as soon as your order is dispatched.

Returns & warranty

All products includes a 2-Year Limited Warranty covering defects in materials and workmanship under normal use.
