Atlas BP12000X Commercial Grade 12,000 lb Capacity 2 Post Baseplate Lift

Atlas BP12000X Commercial Grade 12,000 lb Capacity 2 Post Baseplate Lift

Name: Atlas BP12000X Commercial Grade 12,000 lb Capacity 2 Post Baseplate Lift
Brand: Atlas
SKU: ATEATTD-BP12000X-FPD
Price: 3199.4 USD
Availability: InStock

$3,199.40 - $3,199.40

$3,199.40

$3,199.40 - $3,199.40

$3,199.40

FREE Shipping to all locations in USA

Delivered in 8 to 12 business days

The Atlas BP12000X is a commercial-grade 2-post lift engineered for heavy-duty use, delivering a robust 5,443 kg lifting capacity. Its baseplate, open-top design is ideal for professional garages with limited ceiling height, featuring oversized columns and dual hydraulic chain-over cylinders for reliable performance.

Designed for versatility, this lift accommodates a wide range of vehicles with adjustable width settings and 3-stage symmetric arms. It includes automatic arm restraints, a single-point lock release, and rubber carriage guards, all finished with a durable powder coat for long-lasting protection in demanding workshop environments.

Key Features

Model	ATTD-BP12000X
Capacity	5,443 kg
Overall Height	311.2 cm

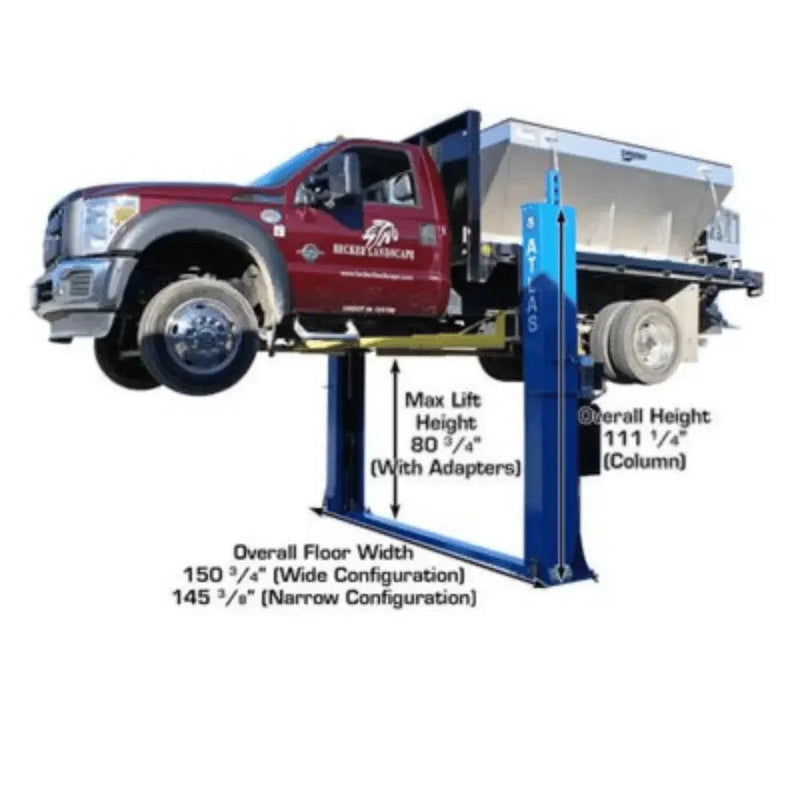

Overall Floor Width	379.4 cm or 392.4 cm

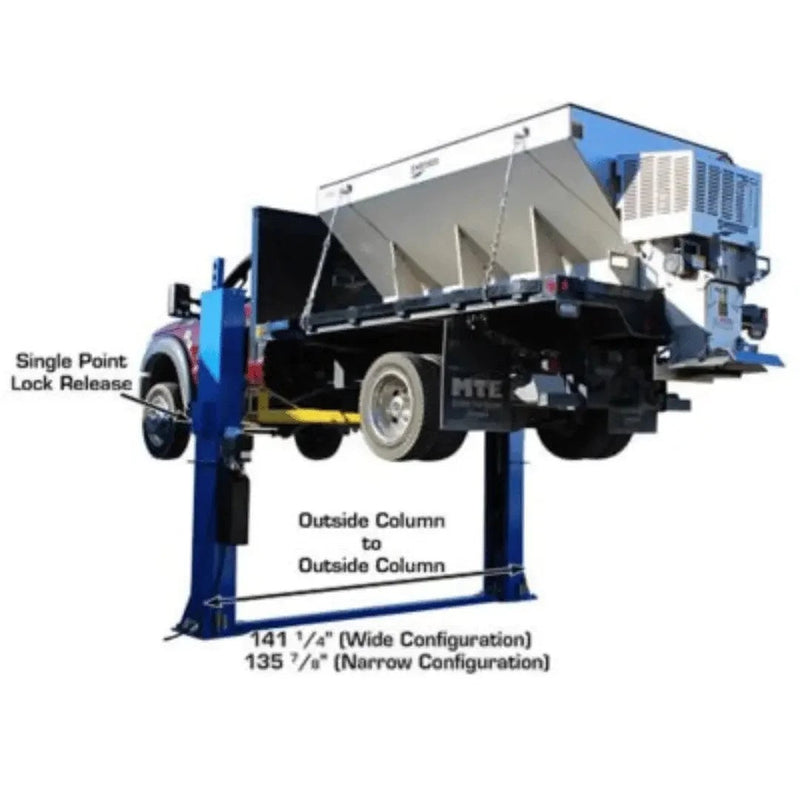

Outside Column to Outside Column	345.1 cm or 358.8 cm

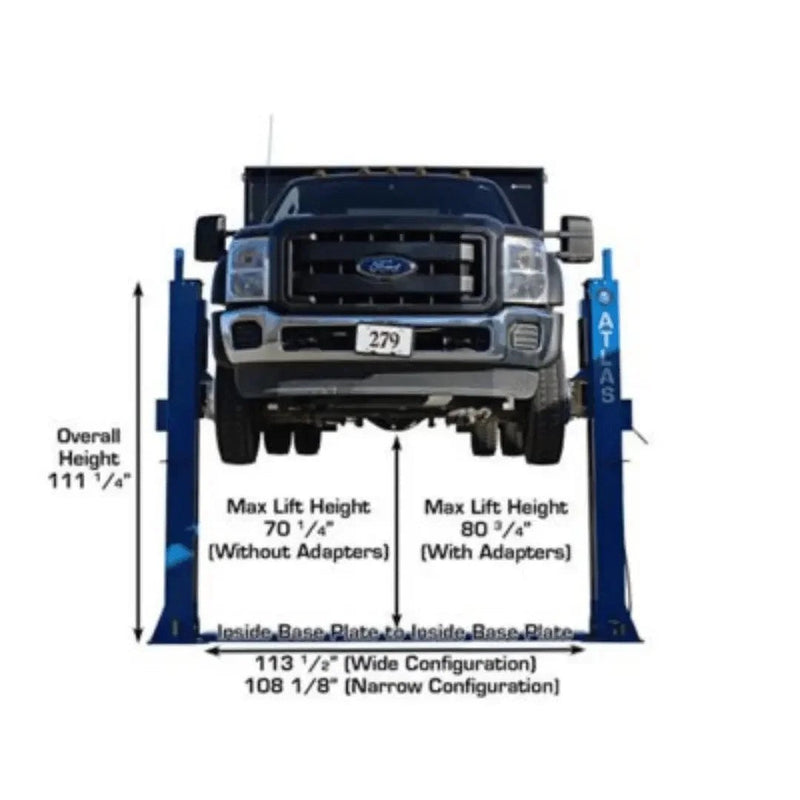

Maximum Lift Height (Without Adapters)	196.9 cm
Maximum Lift Height (With Adapters)	224.8 cm
Minimum Arm Height	10.2 cm
Inside Column	300 cm or 313.7 cm
Drive Thru	263.2 cm or 276.9 cm
Column Size	22.2 cm x 35.6 cm
Column Thickness of Steel	6 mm

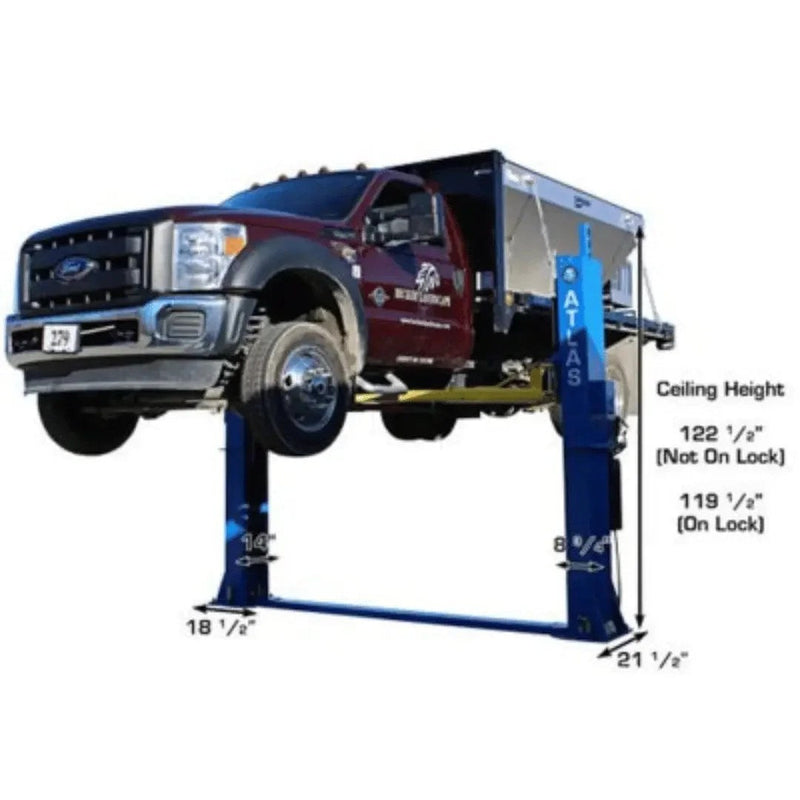

Base Of Lift	47 cm x 54.6 cm
Motor/Electrical Requirement	220 volt single (1) phase. (A 30 amp breaker is recommended)
Oil Requirement	11.4-18.9 Liters AW32/AW46 (NOT INCLUDED)
Shipping Weight	966 kg
Adapter Heights	4 Each 5.1 cm, 7.6 cm, 15.2 cm
Arm Hole/Adapter Peg Size	3.8 cm
Requires a minimum of	15.2 cm of concrete with a 3000 psi. rating
Brand	Atlas
Product Type	2-Post Baseplate Lift
Lift Type	2-Post, Baseplate, Open-Top
Arm Style	3-Stage Symmetric
Arm Restraints	Automatic
Lock Release	Single-Point
Carriage Protection	Rubber Guards
Cylinder Type	Dual Hydraulic Chain-Over
Finish	Powder Coat
Warranty	5 yr Structural, 2 yr Hydraulic (Parts Only)

Highlights

12,000 lb. Capacity
Heavy Duty, Commercial Grade
Baseplate, Open-Top Style Lift

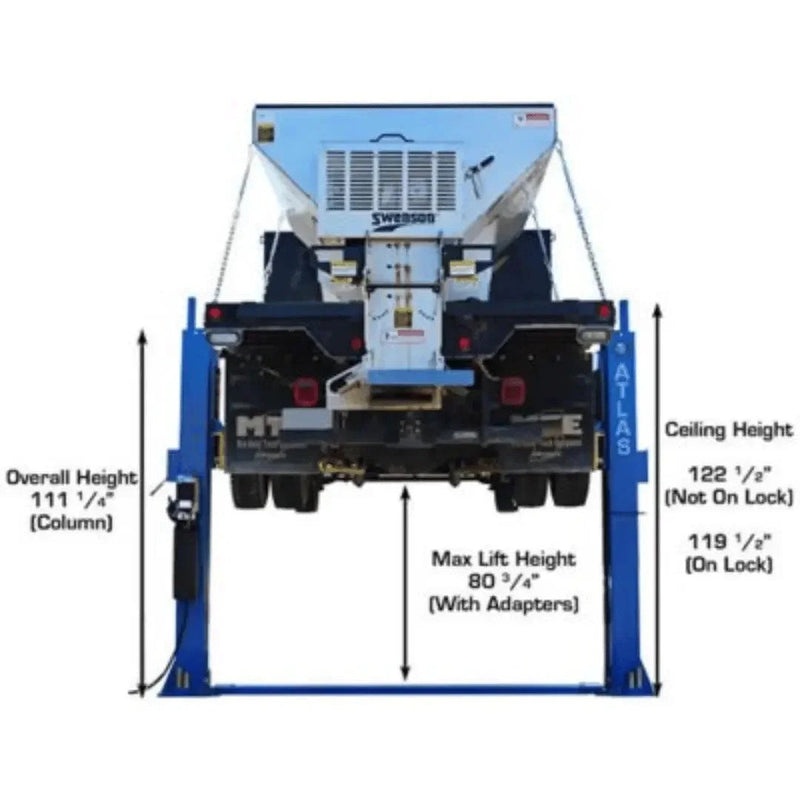

Overall Height: 122 1/2" (10' 2 1/2")
Adjustable Width
3-Stage Symmetric Arms
Automatic Arm Restraints
Single-Point Lock Release
Rubber Guards on Carriages
Dual Hydraulic Chain-Over Cylinders
Powder Coat Finish
12 piece Truck Adapter Set included
Mounting Hardware Included
Shipping Weight: 2,130 lbs.
5-year structural and 2-year hydraulic manufacturer's warranty (parts only)

Compatibility

The Atlas BP12000X is designed for commercial garages servicing a wide range of heavier vehicles, including wider trucks and trailers. Its adjustable width settings allow for driving between the columns and accommodating various vehicle sizes up to its 12,000 lb capacity.

What's included

Atlas BP12000X 2-Post Lift Assembly
12-Piece Truck Adapter Set
Mounting Hardware Kit

Downloads

Frequently asked questions

What is the lifting capacity of the Atlas BP12000X?

The Atlas BP12000X has a commercial-grade lifting capacity of 12,000 lbs (5,443 kg).

What are the ceiling height requirements for this lift?

The overall height of the lift is 122 1/2 inches (311.2 cm), making it an excellent choice for professional garages with limited ceiling height.

What is included with the lift?

The lift comes with a free 12-piece truck adapter set, mounting hardware, and rubber guards on the carriages. The hydraulic oil is not included.

What are the concrete requirements for installation?

The Atlas BP12000X requires a minimum of 6 inches (15.2 cm) of concrete with a 3000 psi rating for safe installation.
